Peru Hydraulic Tank Lift Jack


Peru Hydraulic Tank Lift Jack

Specifications

Type Tank Lift Jack, Hydraulic
Material Steel
Thickness 10-20mm, 20-30mm, 30-40mm, 40-50mm
Certification ISI Certified, Ce Certified
Application Industrial Use
Condition New
Features Fine Finished, Optimum Quality
Fiinishing Polished

Additional Information

Product Code 8425
Port nhava sheva
Payment Terms L/C, T/T
Delivery Time Reddy Stock
Packaging Details Metal packing

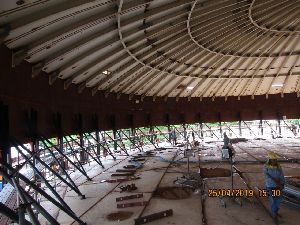

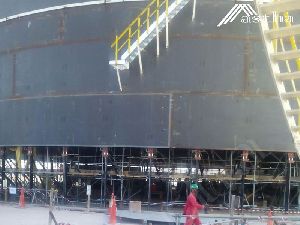

Astha Jacking system is the safest way to erect or API TANK lift tanks.
The jack is a fail-safe device.The mechanical grip jaws prevent the jack from moving downwards and will hold the jack at the same position on the trestle rod in any of the following rare events :
• Hose or hydraulic seal rupture
• Power failure
• Any type of system breakdown

The jack never slips down

Prior to dispatch, each jack is load tested at 1.5 times its rated capacity On customer request, the load test can be witnessed by a Third Party Inspection agency like Bureau Veritas, SGS or the like.

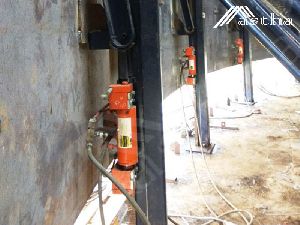

Each jack has two pairs of case hardened grip jaws made of special grade of steel. At any given point of time, either one of the pairs is engaged or locked. During lifting both the pairs are in "locked"position. In this position, the jack can move only upwards.


During lifting of a tank using jacks, an oil cushion is formed since all jacks are connected to each other hydraulically. This implies that no single jack will be subject to excessive load.
