Peru Retractable Tank Jacking System

Peru Retractable Tank Jacking System


Type Hydraulic Tank Jacking Equipment
Certification CE Certified, ISO 9001:2008
Weight 100-1000kg, 1000-2000kg, 2000-3000kg, 3000-4000kg
Color Grey
Voltage 220V, 380V
Automatic Grade Automatic, Semi Automatic
Warranty 1yrs, 1 Year
Conditon New
Material Mild Steel
Brand Astha
Capacity 11-40 Ton
Condition New
Operating Mode Automatic

Additional Information

Product Code 8425
Port nhava sheva
Payment Terms L/C, T/T
Delivery Time Reddy Stock
Packaging Details Metal packing

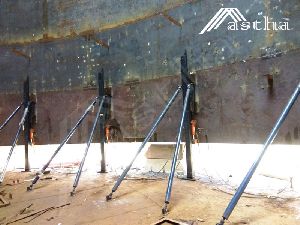

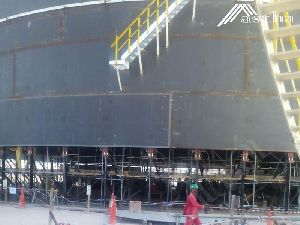

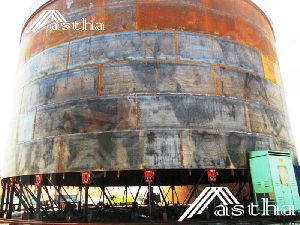

Once the tank is lifted using our jacking equipment, and a new course (shell ring) is placed, vertical welds are completed either manually or using an automatic FCAW welding machine. Thereafter external horizontal welds are done using our SAW single side Automatic Girth Welding machine (Root weld can be done using our Automatic Girth Welding machine).

After external welding, the tank load is released from jacks, lifting lugs and fend-off lugs are cut-off, and with the push of the operating lever on the same powerpack (which is used for lifting jacks), all trestles retract away
from the tank shell, to allow for space for the use of the Astha SAW single side AGW for internal welds.

This allows optimum utilization of the AGW and considerably reduces the need to employ manual welders, which would otherwise be required for internal welds.

Once internal horizontal weld is completed, the jack trestles are moved back hydraulically all at once to their original vertical position, ready to lift the next shell course.
